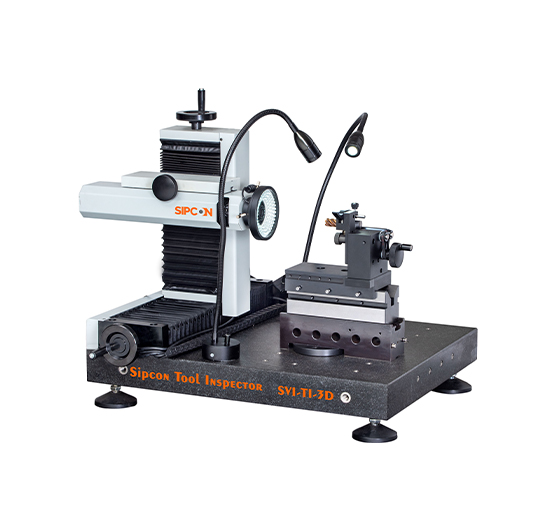

Cutting Tools Measurement System

Ideal for cutting tool manufacturers to measure approximately all the parameters which are required to ensure long life and good quality of the cutting tools. This is a very user friendly 5 axis tool measurement system which can measure all the parameters without any skilled manpower.

Salient Features
  • Measurement range – Tools from diameter 1 mm to 100 mm
  • Large magnification range to measure small tools
  • Precise rotary attachment to measure side and front view in the same setup
  • Tool Pro software to measure more than 100 tool geometry parameters

More than 100 measurement parameters.

Overlap your DXF files on the magnified image to quickly check whether the tool is within the tolerance or not. Supports more than 10 types of Tolerance settings including group Tolerancing and Result window will display all the results with tolerance values and will give an indication for PASS or Fail features.

Customised report generation with color coded pass and fail, options to add the company logo, batch number, operator name, date and time, etc. Image of measurement done is also part of the report format.

Cutting Tools Measurement System
Pdf download icon

To know more about this product —

Download Product Catalogue

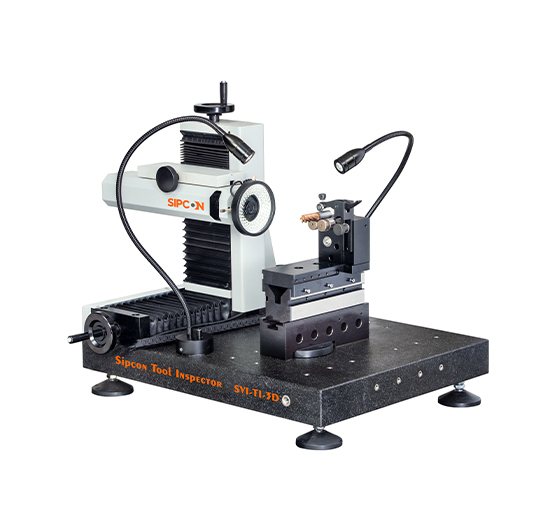

specification SVI-TI-3D
Measuring Range X-Axis: 200mm; Y-Axis: 200mm; Z-Axis 100mm
Resolution 0.001 mm
Accuracy (3+L/200)μm
Repeatability 2 microns
Magnification 14X-90X
Working Distance 170 mm
Field of view Max 18-Min 2.8mm
Max Tool Diameter (Std.) 25 mm diameter with rotary fixture & 100 mm with V block.
Max Tool Diameter (Opt.) 50mm with rotary fixture
Max tool Length 200mm
Camera High Resolution 3MP
Rotary plate range 360°
Rotary Plate resolution 6"
Accuracy of Granite Din Grade 0
Accuracy of the V block Grade 1
Max Load Capacity 20 Kgs
Illumination LED cold light
Illumination - Back LED

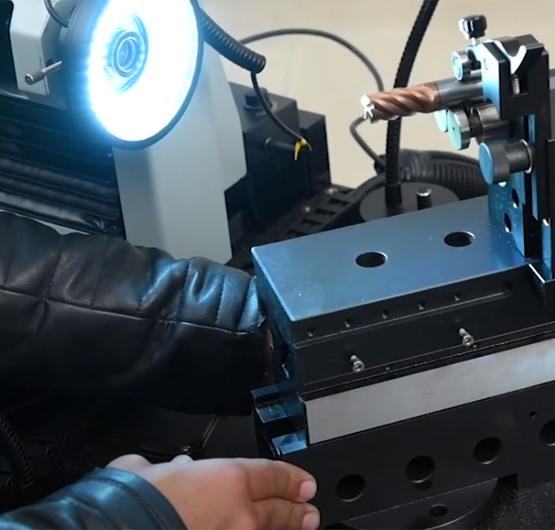

Watch Live

View this video to learn how this product works?

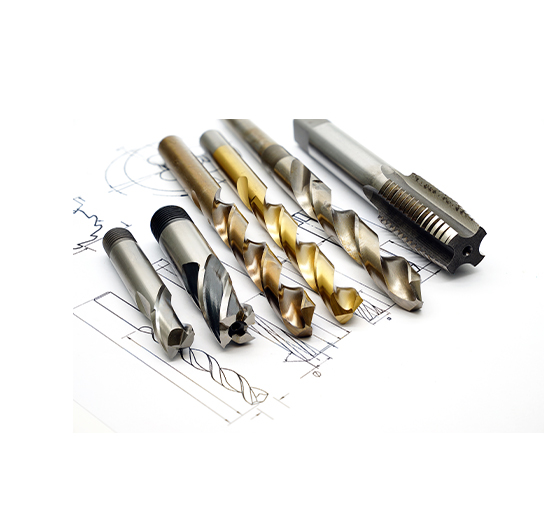

This Product is Ideal For —

End Mills

End Mills

Drills

Drills

Taps

Taps

Ball Nose

Ball Nose

Reamers

Reamers

Special Tools

Special Tools

Benefits of This Products

Easy Reporting

Customized report can be created.

360⁰ Fixture

with least count of 1 second for accurate positioning while measuring the side and front view.

Thread Less Movement

Results in no backlash so precise positioning.

High Resolution Imaging

3Mp camera gives ultra-clear edges for better accuracy.

No Operator Skill

Video Edge Detection ensures points are picked automatically without any operator intervention.

Optional Accessories

Comprehensive range of optional accessories to cover your complete tool range.

Request a Quote

Fillup the form and our customer support manager helps you with pricing and more details about this product.

The Biggest Range of Precise Measuring Solutions | Sipcon

The Biggest Range of Precise Measuring Solutions | Sipcon

Frequently Asked Questions

A cutting tools inspection system is used to check and ensure that tools used for cutting materials are in good condition, accurate, and safe for use. It helps maintain quality, precision, and efficiency in manufacturing processes by detecting any faults or wear in the tools.
Look for the certifications like ISO standards, customer reviews, industry reputation, and partnerships with reputable organizations. Additionally, looking for manufacturers with a track record of quality products, and strong customer support can help identify trusted options.
The price of a cutting tools measurement system in India can vary based on factors like the brand, features, precision levels, and the specific functionalities required. Generally, prices can range from 5- 20lakhs, depending on the complexity and capabilities of the measurement system.
To buy cutting tools inspection system from a genuine manufacturer there are many suppliers and traders in the industry which provide cheap low- quality products. But we always recommend the customer purchase measuring instruments which can adhere to ISO, JIs standards etc. These instruments must be purchased only from a genuine manufacturer which provides prompt service and has a dedicated service team.
To receive a quote from Sipcon Technologies, just fill out the form with your requirements. Their sales team will call you back. You can also reach them at +91 82229 29966 or email info@sipconinstrument.com anytime.
×
