Dittomix

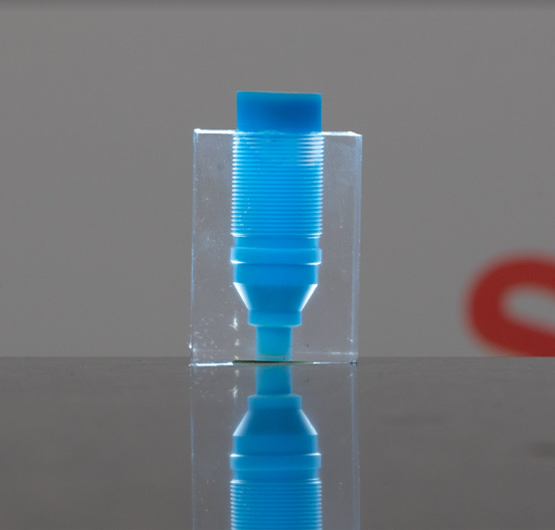

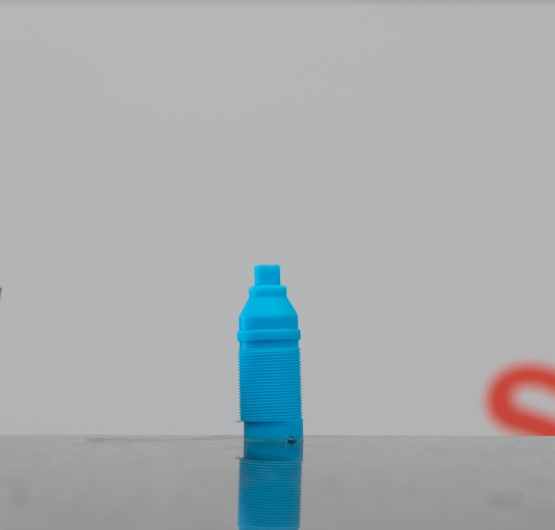

Made up of 2 semi liquid components which solidify when mixed in equal proportions. Replicates all the details like dimensions, forms, texture of the surface on which they are applied within 1 micron accuracy.

Salient Features
  • Convert complex 3D internal measurements to simple 2D measurements
  • Say No to destructive testing
  • 1 micron reproducibility
  • Zero shrinkage
  • Heat and chemical resistant
  • Elastic and non toxic

Forget about expensive 3D internal measurement instruments to measure the dimensions which were not accessible earlier. It is faster, easier, and more accurate than your traditional destructive testing techniques.

Dittomix
Pdf download icon

To know more about this product —

Download Product Catalogue

S.No. Model No. DT912 DT914 DT916
1 Color Green/Blue Orange Red
2 Final Output Very Soft Soft Hard
3 Suitable d/D Ratio <40% <15% 0%
4 Final Shore Hardness (Durometer) 20 40 60
5 Replica Accuracy 1μm 1μm 1μm
6 Curing time 25min 45min 50min
7 Dimensional Stability 0.04% 0.05% 0.07%
8 Internal Threads (fine) Yes No No
9 Small undercuts Yes No No
10 Internal Threads (Big) Yes Yes No
11 Roughness Measurement No No Yes
12 Surface Finish Measurement No No Yes
13 Blade Sectioning No Yes Yes
14 Contact Measurement No Yes Yes
15 Non Contact Measurement Yes Yes Yes

Watch Live

View this video to learn how this product works?

This Product is Ideal For —

Aluminium

Aluminium

Brass

Brass

Metal

Metal

Plastics

Plastics

Rubber

Rubber

Benefits of This Products

1 micron Accuracy

various researchers prove that Internal forms, dimensions, etc replicated by Dittomix are within 1 micron accuracy.

Easy and fast

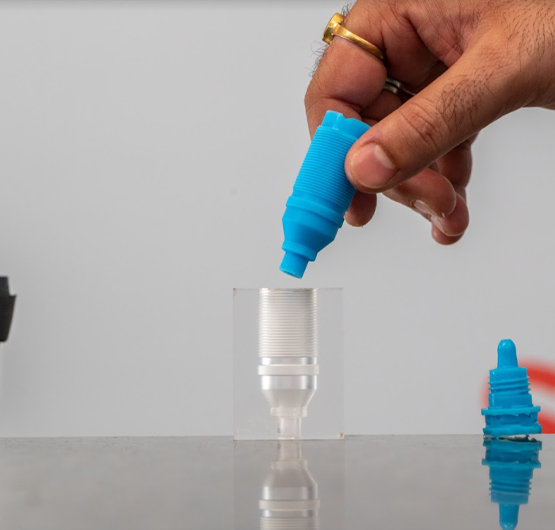

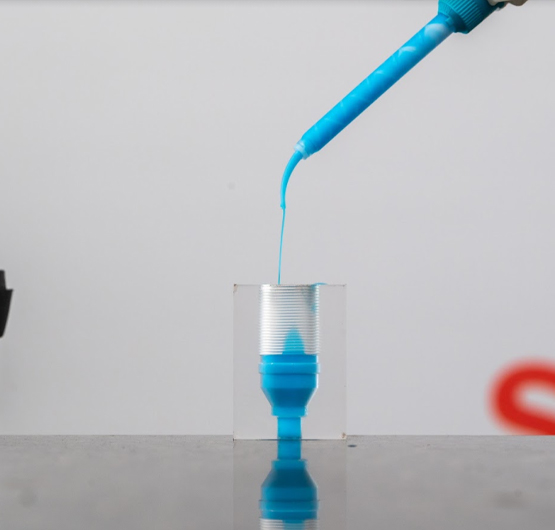

Just fill the fluid and let it settle, take out and do the measurement on your Profile Projector

Heat resistant

No effect of temperature on dimensions so store at any temperature.

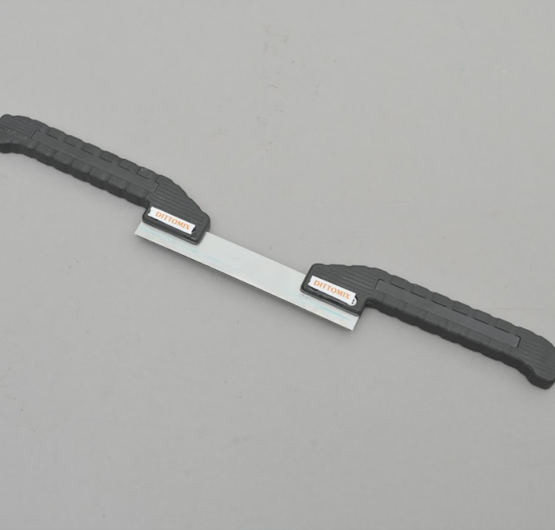

Cut thin section

Cut thin section of 1mm thickness and easily do the measurements.

No manual mixing

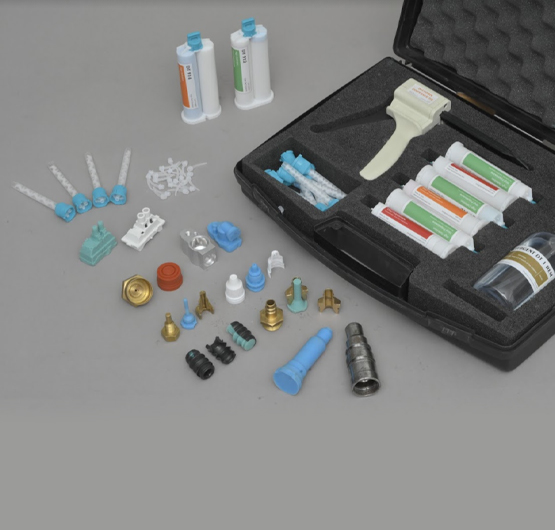

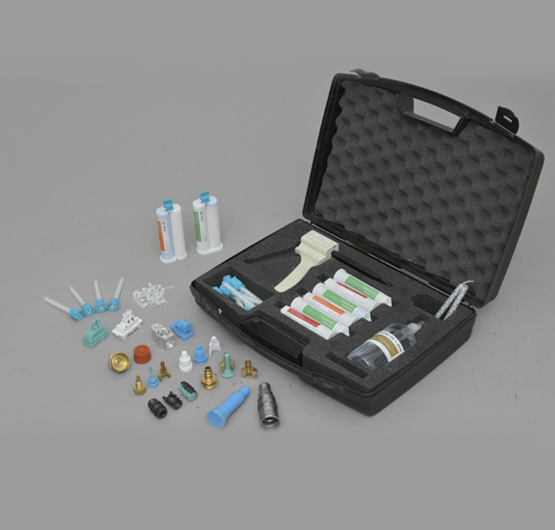

With Dittomix kit, the mixing is done with mixers to get the right proportion every time.

Make copies from copies

Dittomix output can again be used to make male-female replicas.

Request a Quote

Fillup the form and our customer support manager helps you with pricing and more details about this product.
