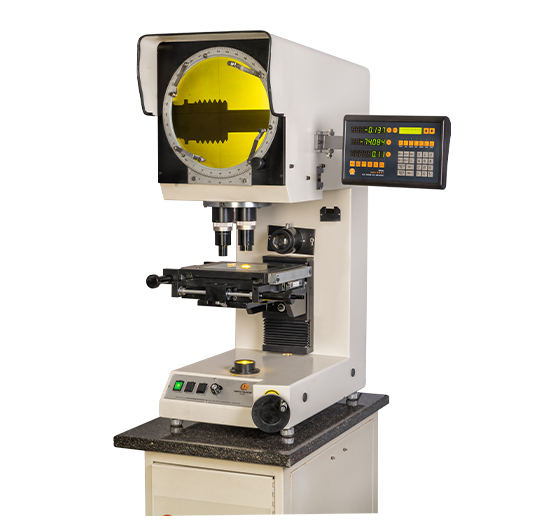

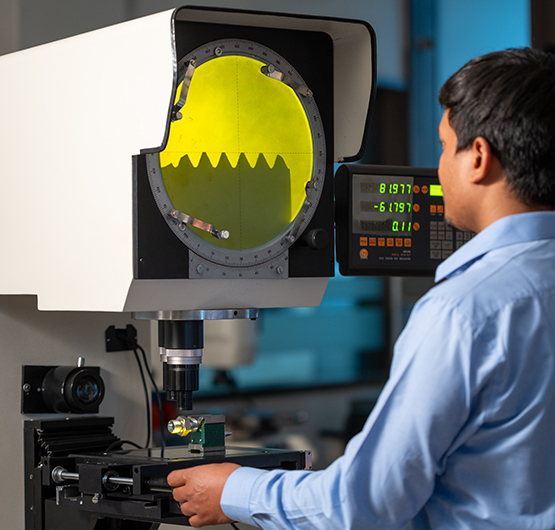

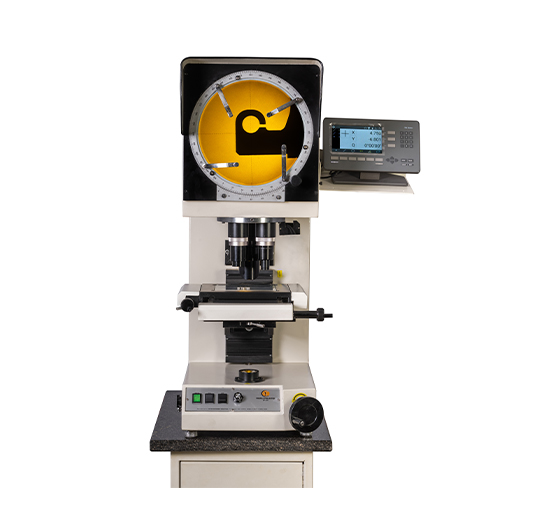

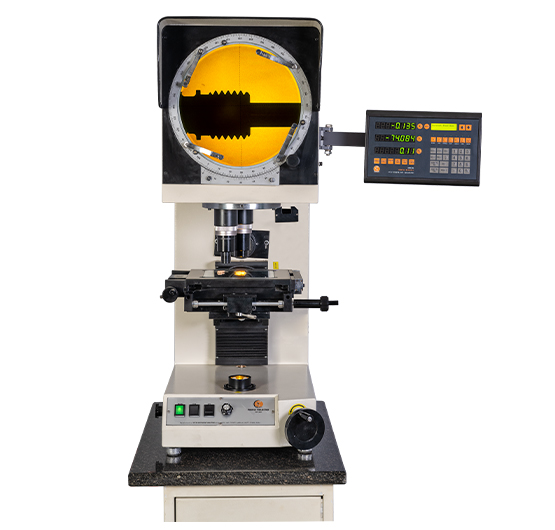

Vertical Profile Projector

Sipcon Profile Projectors are designed ergonomically to enable longer working hours without getting visual or physical fatigue. The projectors are shop floor environment friendly, providing an optimal balance between performance, cost, accuracy, and user-friendliness.

Salient Features
  • Magnification options – 5X,10X, 20X, 50X and 100X
  • Perfect for measurement of corner radius and chamfer angle
  • Zero maintenance – Thread less Workstage
  • Measuring range from 50x50 mm to 400x300mm
  • Measurement Options- Micrometer, DRO or Software

Sipcon profile projectors with world finest projection lenses, optical components and outstanding Illumination ensures a fully correct image, superb image contrast and resolution right to the edge of the screen.

The international standard calibration system assures highest level of accuracy with International and NPL traceability. With a network of fully trained marketing agents SIPCON provides full after sale service and support second to none.

Pdf download icon

To know more about this product —

Download Product Catalogue

S.no. Specifications SP-250 SP-300 SP-400
1 SCREEN Opaque glass screen with 90° cross line Fitted with graduated rotary ring (0-360°) operated by knob, L.C. 1min.
1.1 SCREEN SIZE 250mm 300mm 400mm
2 LIGHT AXIS Vertical Vertical Vertical
3 OPTICS (Std.) 10X 10X 10X
3.1 (Opt.) 20X, 50X, 100X 20X, 50X, 100X 20X, 50X, 100X
3.2 (Mount) Screw Mount 3 Lens Turret Mount/ Screw Mount 3 Lens Turret Mount/Screw Mount
4 WORKSTAGE SIZE (Std.) 160mm X 160mm 160mm X 160mm / 260mm X 260mm 260mm x 260mm
5 MEASURING RANGE(Std.) 50mm X 50mm 50mm X 50mm / 100mm X 100mm 100mm X 100mm
5.1 (Opt.) N.A. X-Axis upto 400mm, Y-Axis upto 200mm
6 FOCUSING 90mm 90mm 90mm
7 LINEAR MEASUREMENT Micrometers Micrometers / Built-in Glass Scale Built-in Glass Scale
8 RESOLUTION 1μm 5/1/0.5μm 5/1/0.5μm

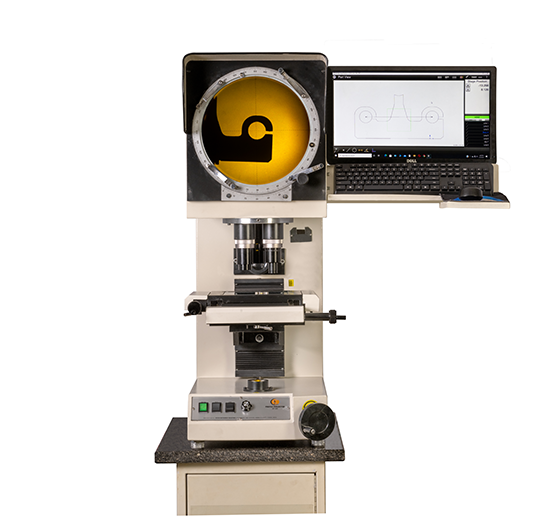

9 MEASURING SYSTEM Micrometers Micrometers / D.R.O. / PC based Software (See Pg 8-12)
10 PROJECTION ACCURACY ±0.05% (Contour / Surface)
11 ILLUMINATION (Contour) 24V/150W halogen lamp, illumination control with condenser unit provide light as per lens
11.1 (Surface) Twin 24V/150W Halogen lamp provides shadowless light on optical axis
12 STAND Unique rigid pedestal system facilitates vibration free handling of component
13 COOLING SYSTEM Fan
14 POWER SUPPLY 110/220V AC, 50/60Hz
15 MOTORIZED MOVEMENT N.A. Optional (X, Y and focusing with speed control)
16 OPTIONAL HARDWARE Profile Charts, Rotary Table, V-block, Centre Holding Device Opto Edge Sensor, Rotary Encoder(See Pg 12)

Watch Live

View this video to learn how this product works?

This Product is Ideal For —

Automobile Industry

Automobile

Cutting Tool Room

Cutting Tools

Aerospace

Aerospace

Rubber

Rubber

Electricity

Electrical

Gears

Fasteners & Gears

Benefits of This Products

Magnifications To Cover Your Big And Small Parts

All Measurement Options From Basic To Complex Needs

Outstanding Illumination

Wide Measuring Range To Cover Your Biggest Parts

Rapid And Fine Movement For Fast Measurement And Precise Positioning, Respectively

Least Count To Suit Most Stringent Applications

Don’t Outsource Your Reverse Engineering Work From Now

A Perfect Solution For Small Corner Radius And Chamfer Measurement

Complete Gd&T Solutions Inbuilt

Wide Range Of Charts For Fast Comparison

Best In Industry In Terms Of Accuracy & Repeatability

Free Yourself From Operator To Operator Variation

Request a Quote

Fillup the form and our customer support manager helps you with pricing and more details about this product.

The Biggest Range of Precise Measuring Solutions | Sipcon

The Biggest Range of Precise Measuring Solutions | Sipcon

Frequently Asked Questions

A vertical profile projector is used to magnify and project the profile of an object onto a screen for accurate measurement and inspection of its dimensions, shapes, and angles. It helps in assessing the quality and precision of manufactured parts by comparing them to standard specifications.
Look for the certifications like ISO standards, reviewing their reputation through customer feedback, verifying authorized partnerships, assessing product quality, and ensuring reliable customer support.
A vertical profile projector in India can range from around 1.5- 50lakhs or more, depending on the brand, features, and specifications. Prices can vary based on the supplier and the specific model you're looking for.
To buy vertical profile projector machine from a genuine manufacturer there are many suppliers and traders in the industry which provide cheap low- quality products. But we always recommend the customer purchase measuring instruments which can adhere to ISO, JIs standards etc. These instruments must be purchased only from a genuine manufacturer which provides prompt service and has a dedicated service team.
To receive a quote from Sipcon Technologies, just fill out the form with your requirements. Their sales team will call you back. You can also reach them at +91 82229 29966 or email info@sipconinstrument.com anytime.
×
