Video Measuring System for Precision Measurement

Looking for the Ideal Non-Contact Dimensional Measurement Solution ?

Wide Range of VMM Solutions for Every Measurement Requirement

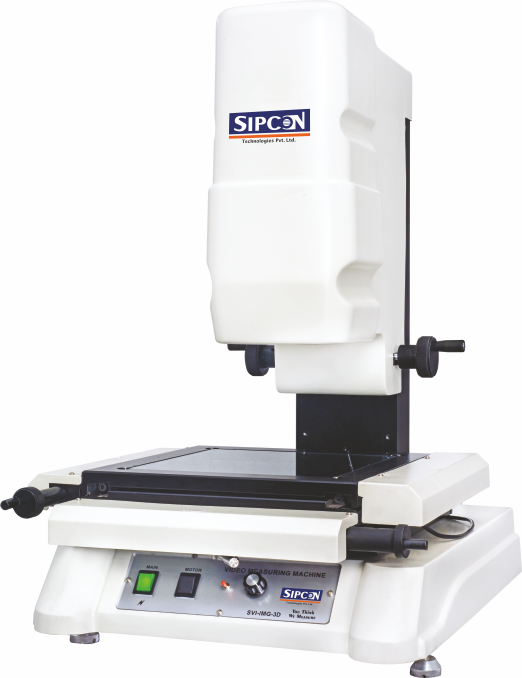

User-Friendly Video Measuring System for Edge Detection

User friendly VMM
for better edge detection

Get more info

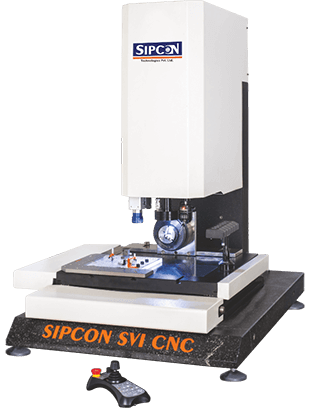

Multi-Sensor CNC Video Measuring System for Precision Measurement

Multi-Sensor CNC with
three measurement systems in one

Get more info

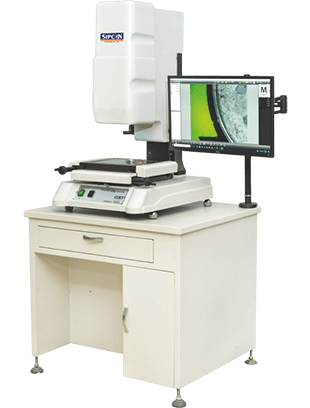

Video Measuring System Components and Parts

Explore more
with a larger view

Get more info
Video Measuring System with Bottom LED Illumination

From Automotive to Electronics

Instantly Measure Every Part

Searching for a Video Measuring System that fulfills every quality requirement of your industry? SIPCON VMM makes even the most complex part measurements simple, fast, and accurate – all in a single click. With 45+ years of expertise in metrology, SIPCON delivers one of the most user-friendly VMMs in the world. Designed for versatility, it’s truly one system for every industry and every measurement task.

Optics & Illumination

Multi Ring & Multi Sector Axial Lighting (4 or 8 Sector)

Video Measuring System with Bottom LED Illumination

Bottom LED

Video Measuring System with Ring Light Illumination

Ring Light

Video Measuring System with Co-Axial Illumination

Co - Axial

Video Measuring System with Low Angle Ring Light Illumination

Low angle Ring Light

Choose Your Perfect VMM: Model Comparison


SVI-IMG Series (Model 1)
SVI-CNC (Model 2)
SVI-FOV (Model 3)
Primary Distinction
General-Purpose Manual VMM
High-Capacity CNC (Automated) VMM
Fixed Field of View (FOV) VMM
Operation
Manual with quick release knob
CNC
Manual with quick release knob
Standard Measuring Range
150 Γ— 100 Γ— 100 mm
250 Γ— 150 Γ— 200 mm (Largest)
150 Γ— 100 Γ— 100 mm
Software
SIPMEAS / M3
MSU-3DPro / M3
M3
Magnification / Vision

Optical: 0.7X – 4.5X (Zoom)

Optical: 0.7X – 4.5X (Zoom, Optional Motorised)
Fixed FOV: 16 mm, 32 mm, 48 mm (No Zoom)
Platform Load Capacity
15 Kgs
30 Kgs (Highest)
15 Kgs
Base Platform
Metal / Granite
Granite base
Metal / Granite
Advanced Optional Sensors

Touch probe, Autofocus

Laser, White Light Sensor, Rotary Indexer (Most advanced options)
Touch probe, DXF overlay

Core Precision (R/A/R)

Same: 0.001 mm, (3+L/200) micron, Β± (0.002 mm)
Same: 0.001 mm, (3+L/200) micron, Β± (0.002 mm)
Same: 0.001 mm, (3+L/200) micron, Β± (0.002 mm)

Not Sure Which VMM Is Right for You?

You’re not aloneβ€”over 70% of buyers face the same challenge.

Let our experts help you find the ideal Sipcon dimension measuring solution

Why Only SIPCON?

SIPCON Video Measuring Systems Across India
SIPCON Video Measuring System Service Locations in India

Trusted By leaders

45+ Years of Metrology Excellence | Trusted by 7500+ Users Worldwide

7 Patents

NABL Certified

ISO & CE Certified

Download More Information

SIPCON Dimensional Measurement Solutions Catalogue

Combined Catalogue

Explore SIPCON’s advanced dimensional measurement solutions according to your needs

SIPCON Video Measuring System Product Catalogue

Product Catalogue

Discover the wide range of Vision Measurement Systems for complete measurements

Video Measuring System Buying Guide

Factor guide to buy VMM

Some key consideration you may understand before buying an video measuring machine

Frequently Asked Questions

A video measuring machine is used to accurately measure the dimensions and features of objects using a video camera and specialized software. It helps in quality control, precision engineering, and ensuring accurate manufacturing by providing precise measurements quickly and efficiently.

Look for certifications from recognized organizations in the industry, such as ISO certifications or compliance with standards like ASTM or NIST. Verified manufacturers often display these credentials on their websites or product information. Additionally, check customer reviews and feedback.

The price of a video measuring machine in India can vary widely based on the brand, model, and specifications. It generally ranges from β‚Ή3.5 lakh to β‚Ή20 lakh or more, depending on the features and accuracy required.

To buy a video measuring instrument from a genuine manufacturer, there are many suppliers and traders in the industry that provide cheap, low-quality products. But we always recommend that customers purchase measuring instruments that adhere to ISO, JIS standards, etc. These instruments must be purchased only from a genuine manufacturer that provides prompt service and has a dedicated service team.

To receive a quote from Sipcon Technologies, just fill out the form with your requirements. Their sales team will call you back. You can also reach them at +91 82229 29966 or email info@sipconinstrument.com anytime.
