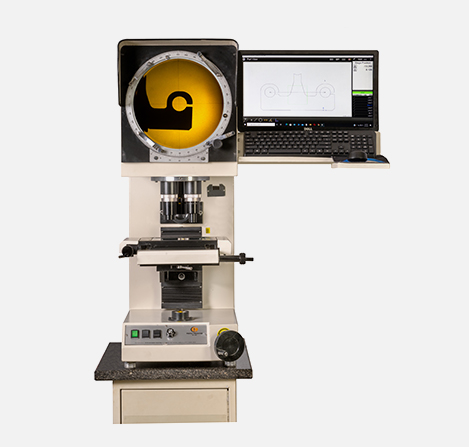

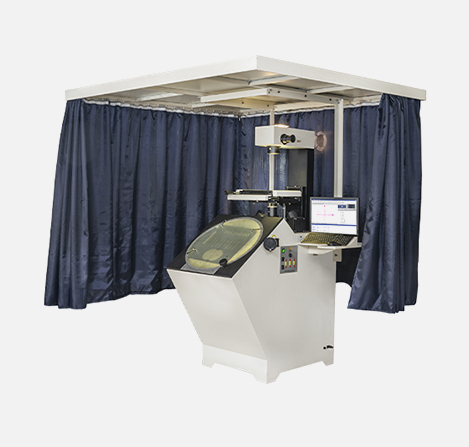

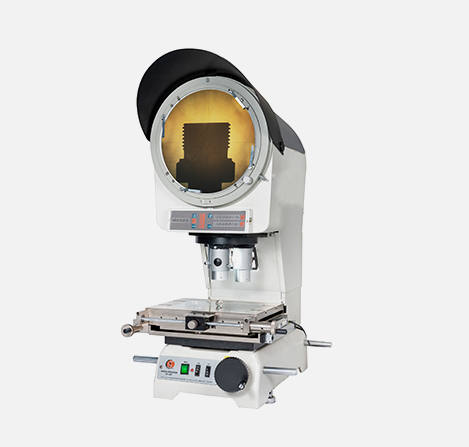

Vertical Profile Projectors

Vertical Profile Projectors Manufacturers Suppliers India
Vertical Profile Projectors Manufacturers Suppliers India


S.no.

Specifications

SV-400

SV-600

SV-800/1000

1 SCREEN Opaque glass screen with 90░ cross line fitted with graduated rotary ring(360░) operated by knob, L.C. 1min.
1.1 SCREEN SIZE 400mm 600mm 800/1000mm
2 LIGHT AXIS Vertical Vertical Vertical
3
OPTICS Std.
10X, 20X 10X, 20X 10X, 20X
3.1
  Opt.
25X, 50X, 100X 25X, 50X, 100X 25X, 50X, 100X
3.2
  Mount
Turret Mount with Click Stop
4
WORKSTAGE SIZE Std.
260mm X 260mm 260mm X 260mm 260mm x 260mm
5
MEASURING RANGE Std.
100mm X 100mm 100mm X 100mm 100mm X 100mm
5.1
  Opt.
X-Axis upto 400mm, Y-Axis upto 200mm
6 FOCUSING 100mm 100mm 100mm
7 LINEAR MEASUREMENT Built-in Glass Scale Built-in Glass Scale Built-in Glass Scale
8 RESOLUTION 5/1/0.5Ám 5/1/0.5Ám 5/1/0.5Ám
9 MEASURING SYSTEM Micrometers / D.R.O. / PC based Software
10 PROJECTION ACCURACY ▒0.05% (Contour / Surface)
11
ILLUMINATION Contour
24V/150W halogen lamp, illumination control with condenser unit provide light as per lens
11.1
  Surface
Twin 24V/150W Halogen lamp provides shadowless light on optical axis
12 STAND Unique rigid pedestal system facilitates vibration free handling of component
13 COOLING SYSTEM Fan
14 POWER SUPPLY 110/220V AC, 50/60Hz
15 MOTORIZED MOVEMENT Optional (X, Y and focusing with speed control)
16 OPTIONAL HARDWARE Profile Charts, Rotary Table, V-block, Centre Holding Device Opto Edge Sensor, Rotary Encoder
